(this site is still under constuction)
cable with just GND, TX and RX will work fine, but you'll have to push power on button on phone each time you want to make a connection

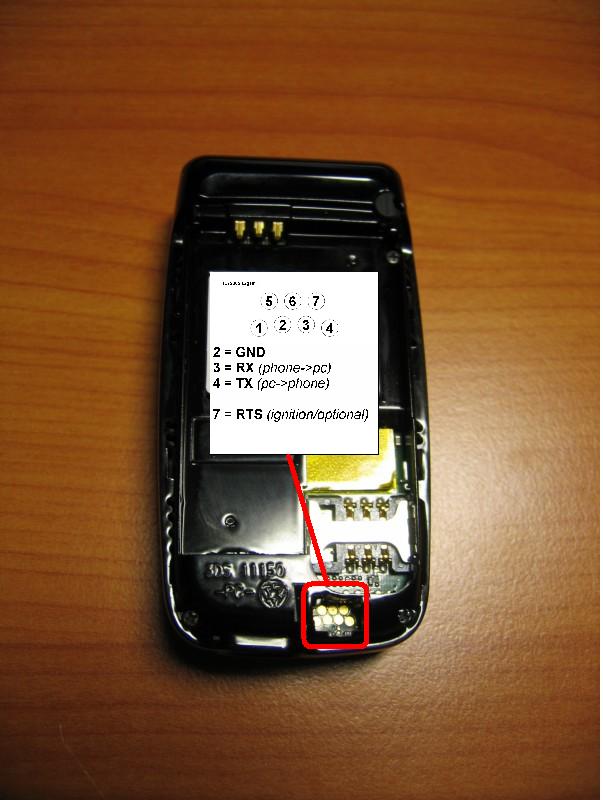

so better is to build cable with RTS signal connected to pin #7 (auto ignition) - with this cable no need to push any buttons on phone anymore

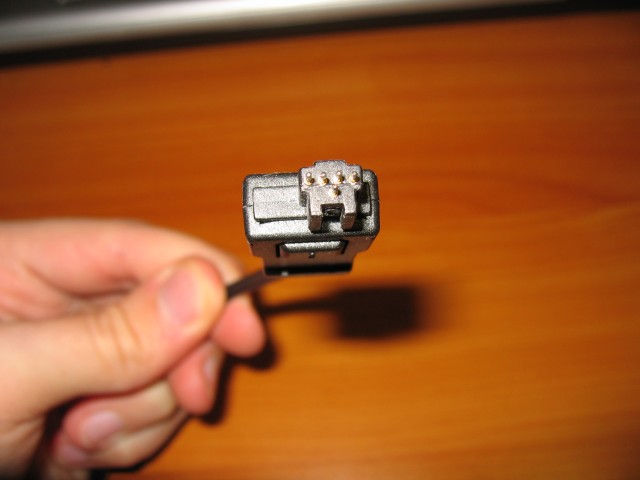

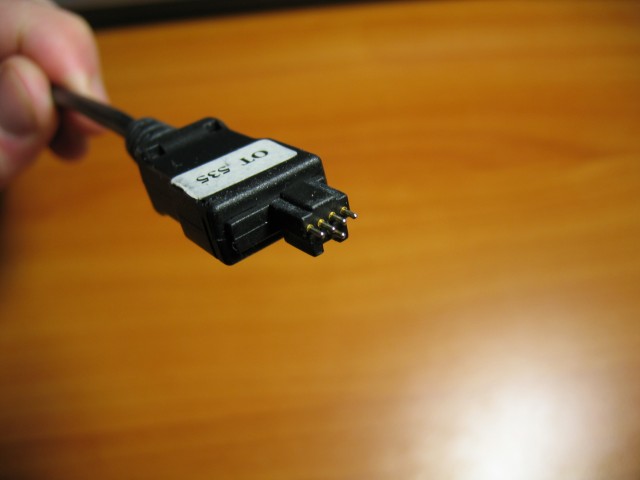

you can use connector for ot535 or ot715 phone

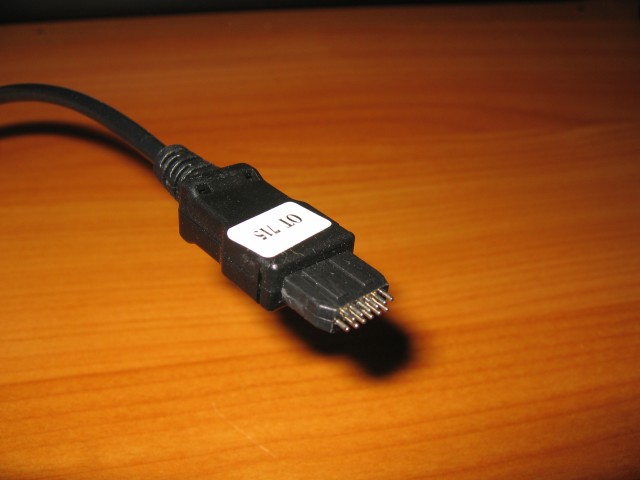

(as you can see for autoignition cable you'll need a ot715 connector)
you must cut the connector a little to fit in the phone

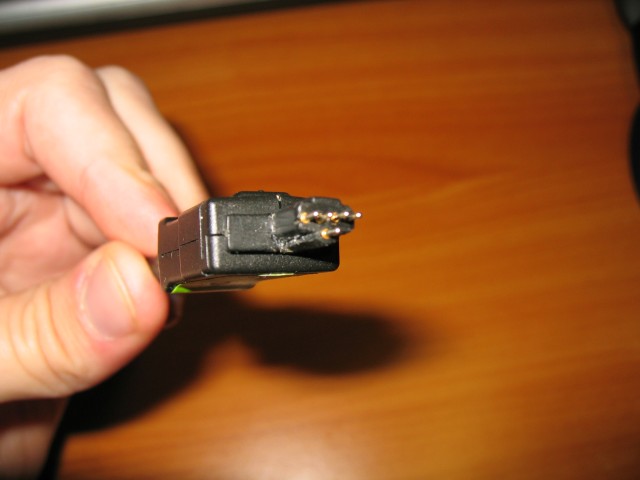

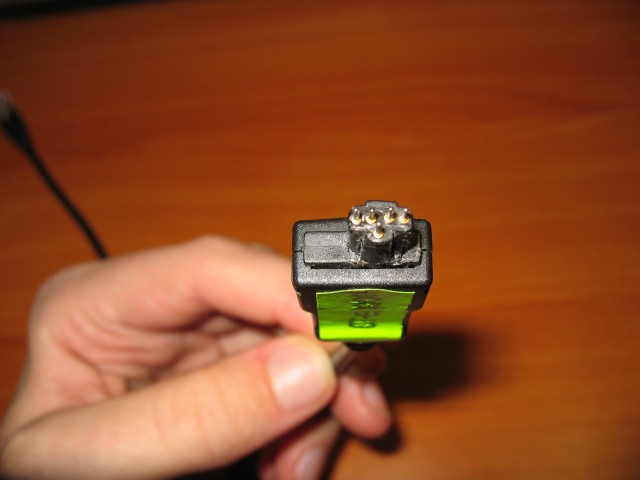

normal cable:

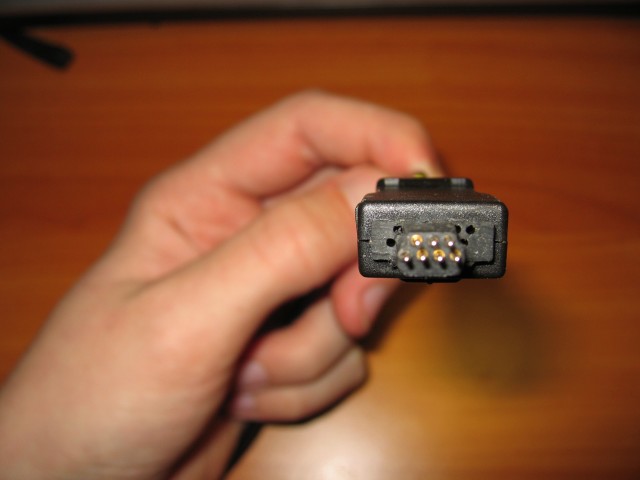

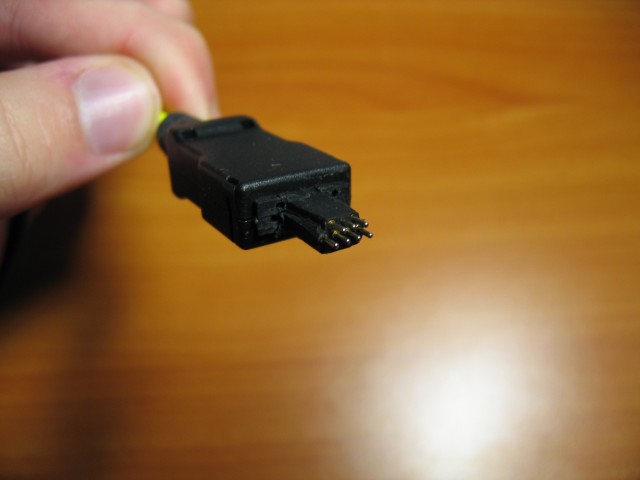

autoignition cable:
created by s2gsm (C)2005
last update: 17.12.2005
